The general parameters to be considered before and during the design of any printed circuit board, but focuses on boards incorporating copper weights ≥ 3oz/ft2. The following parameters can and will have a major impact on reliability and performance of the end product. Hemeixinpcb believes the parameters listed in this section are a MINIMUM to be considered. A comprehensive listing of all parameters and their design/performance tradeoffs is shown in IPC-2221.

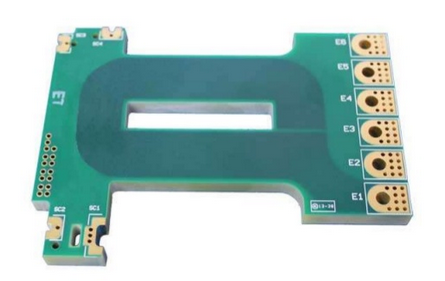

A very advanced Have Copper PCB is the multilayer Have Copper PCB with two to five different copper levels, all interconnected and intertwined on the same layer. Note the extra vias in the large pads to pass more current and keep the pad attached, as well as providing a stronger pad for the bolt holding the cable in place.
Hemeixinpcb has been building Have Copper PCB boards with traces and copper planes of up to 30 ounces Thick Copper Pcb for over 6 years. Our expertise is in producing at a reasonable cost, Have Copper PCB that are of proven designs. Our engineering team can work with you to review your design to make sure that they can be manufactured with the highest quality at the best overall cost.
